INTEGRA

Offering you

THE BEST VALUE

on the market

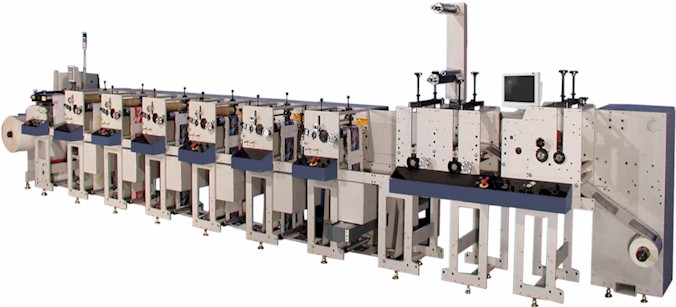

Designed with the customer in mind. The INTEGRA is loaded with features and still meets the budgets of smaller companies in today's economy. Allied has a tradition of excellence and the INTEGRA will continue this into the future.

Printable Substrates	Applications
Films, Foils, Paper, Self Adhesive, Synthetics, Tag, Light Board, and Others	Flexible Packaging, Beverage and Wine, Prime Labels, Industrial Labels, Bar Code, Pharmaceutical, Nutracueticals, Cosmetic, Beauty, Security, Light Carton, Tags, Tickets, Gaming Cards, Scratch Off, Coupon, Specialty Converting, Medical, Price Marking, and many others

Features	Options
- 500fpm Maximum Speed (150mpm) - 10 1/4 & 13 1/4 Inch Web Widths (260mm & 335mm) - 40 Inch Unwind (1000mm) - Infrared Dryers - Positive Lock Plate Roll Pins - Full 24 Inch Repeat (610mm) - 30 Inch Waste Windup (760mm) - Open Design for Greater Operator Accessibility - 3/4 Inch Steel (19mm) Framework - Enclosed Gear Boxes Throughout	- Film Package - Full U.V. - Video Web Inspection - Rotary Screen - Hot or Cold Stamping - Photo Polymer Embossing - Ink Jet - Bar Code - Dual Web - Turret Rewind - Custom Designs - And More

Technical Specifications

10 Inch Model

13 Inch Model

Maximum Substrate Width:

Maximum Print Width:

Maximum Diecut Width:

Maximum Print Repeat:

Maximum Diecut Repeat:

Unwind Diameter:

Rewind Diameter:

Laminator Diameter:

Waste Windup Diameter:

Maximum Press Speed:

Drive Motor:

10.25" (260mm)

10.00 (255mm)

10.25" (260mm)

24.00" (610mm)

40.00" (1010mm)

30.00" (760mm)

500fpm (152mpm)

10HP

13.25" (335mm)

13.00 (330mm)

13.25" (335mm)

24.00" (610mm)

40.00" (1000mm)

30.00" (760mm)

500fpm (152mpm)

10HP
